16-Element CRPA Anti-Jamming & Anti-Spoofing Antenna
The flagship: 15 jammers suppressed plus full spoofing rejection
- Array elements
- 16
- Max jammers
- 15
- Weight
- ≤2600 g

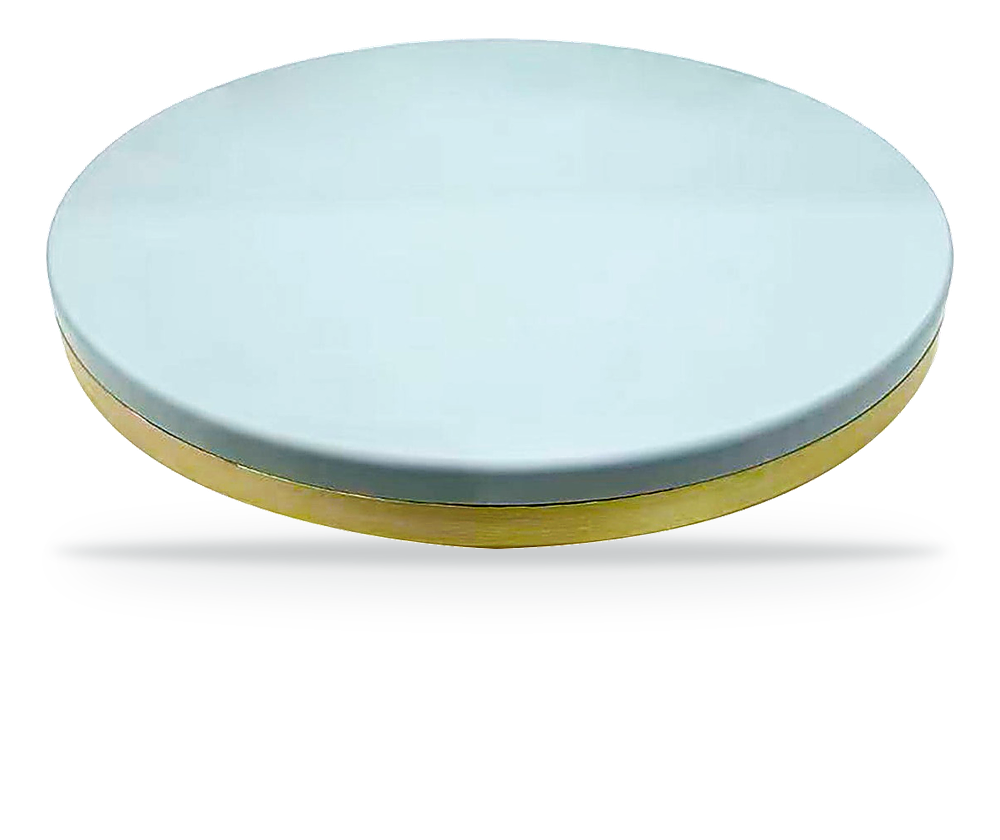

The TX2512-AJS-16CH-DPA is a GNSS anti-jamming terminal for professional users. It supports interference suppression for BDS-B1i and GPS-L1 and Galileo-E1 signals against a maximum of 15 jammers, and adds anti-spoofing protection. The antenna array, anti-jamming components and GNSS receiver are integrated internally. Designed to guarantee reliable navigation for UAVs and unmanned ground vehicles, protecting the user terminal from unintentional interference and malicious attacks and substantially raising PNT information security.
Interference types suppressed: band-limited Gaussian white noise, spread-spectrum matched-spectrum interference, pulsed, swept-frequency and mixed interference. Suppression coverage: azimuth 0—360°, elevation −90° to +90°.
| Dimensions | Ø370 × 28.7 mm |
|---|---|
| Power | ≤40 W |
| Weight | ≤2600 g |
| Frequencies | 1561.098 MHz · 1575.42 MHz |
| Constellations | BDS-B1i · GPS-L1 · GALILEO-E1 |
| RF output | -70 to -60 dBm · 50 Ω |
| Anti-spoofing | Residual spoofing signal CN0 at output: ≤20 dB |
The plot below is locked to this model's array. Drag a jammer to see where the nulls form and which satellites stay locked.
- Nulls / capacity
- —
- Satellites held
- —
