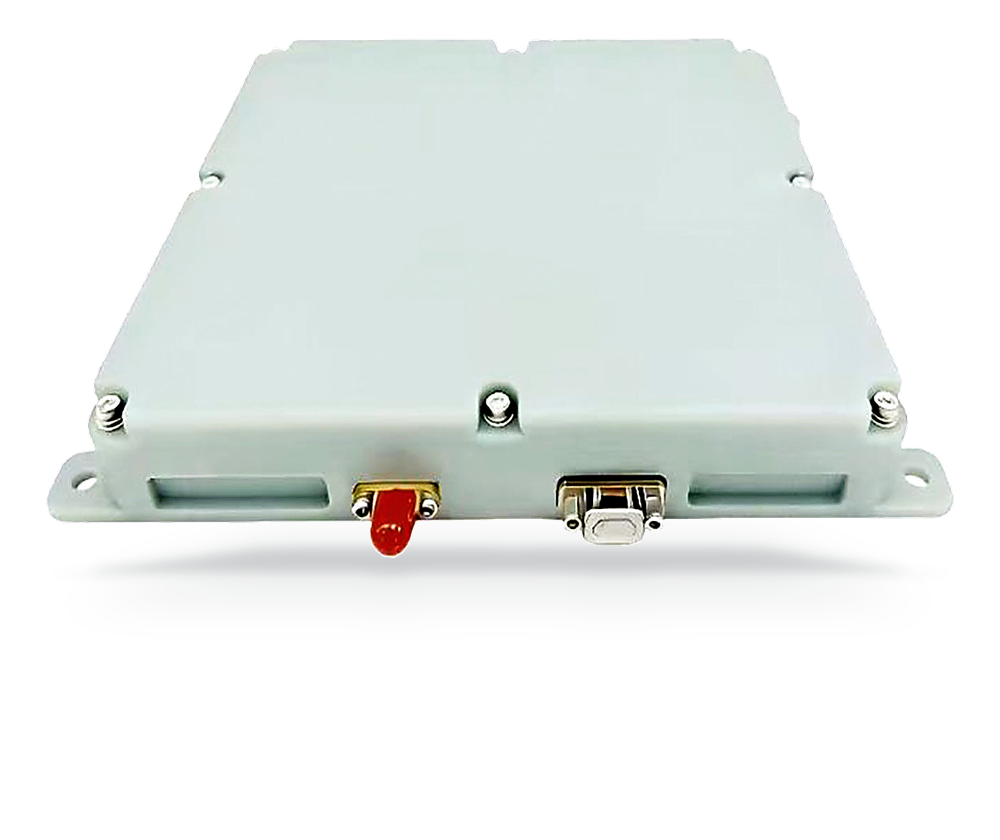

8-Element CRPA Anti-Jamming Antenna
GPS + GLONASS multi-system nulling against up to 7 jammers
- Array elements
- 8
- Max jammers
- 7
- Weight
- ≤720 g
A miniature multi-system anti-jamming terminal developed for industry users such as UAV operators. It receives GPS-L1 and GLONASS-G1 and can counter interference in multi-system mode simultaneously, with a maximum of 7 jammers suppressed. The unit integrates the antenna array, anti-jamming components and GNSS receiver, and is notable for its small footprint, low weight and low cost.
Interference types suppressed: band-limited Gaussian white noise, spread-spectrum matched-spectrum interference, pulsed, swept-frequency and mixed interference. Suppression coverage: azimuth 0—360°, elevation −90° to +90°.
| Dimensions | 150 × 150 × 22.5 mm |
|---|---|
| Power | ≤19 W |
| Weight | ≤720 g |
| Frequencies | 1575.42 MHz · 1602 MHz |
| Constellations | GPS-L1 · GLONASS-G1 |
| RF output | -70 to -60 dBm · 50 Ω |
The plot below is locked to this model's array. Drag a jammer to see where the nulls form and which satellites stay locked.
- Nulls / capacity
- —
- Satellites held
- —
Ask for pricing and lead time
Tell us the platform, the power budget and the interference you expect. We will confirm this model fits, or point you at the one that does. We respond within one business day.
